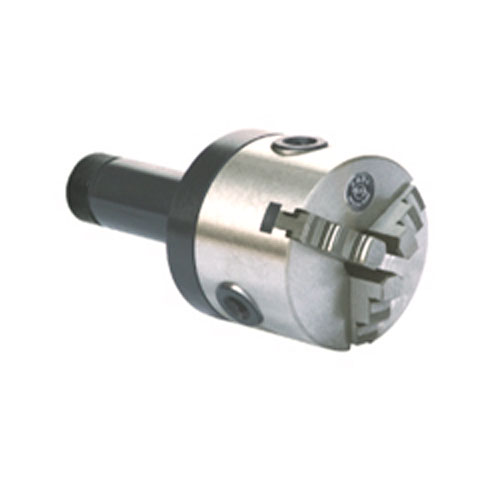

產品：RKB11
產品特性:
■特點：
☆通過莫氏錐柄卡盤安裝在機床尾座上，用于工件中心不能使用的加工中（例如管件的加工），對工件起輔助定位支撐作用。
☆安裝省時，定心精度高，夾持范圍廣。
☆卡盤采用鋼制盤體和封閉的球軸際結構，可適用于較高轉速。
■Specificity:
☆These chucks are used in tailstocks for jobs where center can not be used (example-machining of tube) through the morse taper shank so the chucks can be mounted and removed easily , location and supporting for the workpieces.
☆With short mounting time, high centring precision , and large clamping range.
☆Steel body and sealed ball bearings used for high speed.
產品詳情

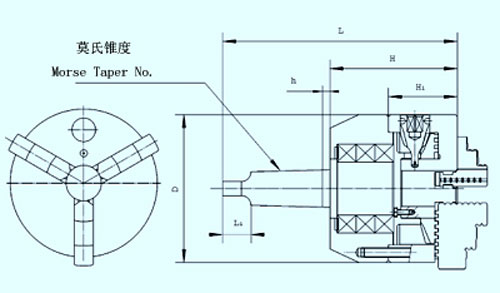

■尺寸、性能參數 Dimension、Characteristic Parameters
|
規格D
Size
|
L
|
L1
|
H1
|
H
|
h
|
d
|
莫氏錐度
Morse Taper No.
|
最大輸入扭矩
Max. input torque
|
極限轉速
r/min
Max.speed
|
|
RKB113″
|
170
|
16
|
50
|
90
|
5
|
17.78
|
2
|
40
|
4000
|
|
2°51′41″
|
|
RKB114″
|
200
|
20
|
55
|
92
|
5
|
23.825
|
3
|
60
|
3500
|
|
2°52′32″
|
|
RKB115″
|
240
|
24
|
58
|
117
|
6.5
|
31.267
|
4
|
100
|
3200
|
|
2°58′32″
|
|
RKB116″
|
291
|
29
|
65
|
135
|
6.5
|
44.399
|
5
|
160
|
3000
|
|
3°00′53″
|
|
