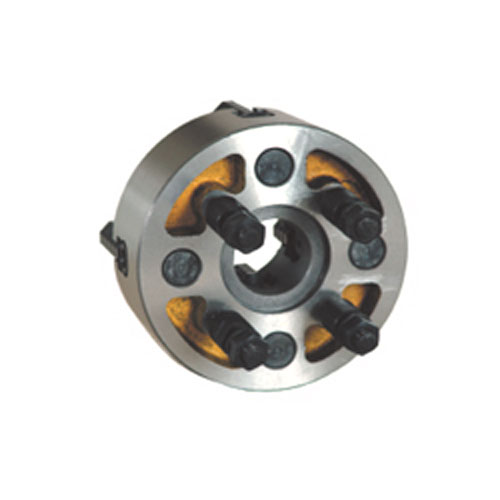

產品：K72口/口C型
產品特性:
產品詳情

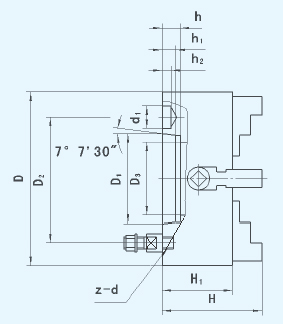

■C型：拔盤、螺栓鎖緊連接 Form C: mounting with studs and locknuts
|
規格D
Size
|
主軸頭號
short taper No.
|
D1
|
D2
|
D3
|
H
|
H1
|
h
|
H1
|
h2
|
d1
|
z-d
|
凈重Kg
Net WT.
|
|
160
|
3
|
53.975
|
75.0
|
45
|
95
|
67
|
13
|
10
|
—
|
—
|
3-M10
|
9
|
|
200
|
3
|
53.975
|
75.0
|
51
|
107
|
75
|
—
|
10
|
—
|
—
|
3-M10
|
15
|
|
200
|
4
|
63.513
|
85.0
|
56
|
107
|
75
|
13
|
10
|
6.5
|
14.7
|
3-M10
|
15
|
|
250
|
4
|
63.513
|
85.0
|
61
|
120
|
80
|
—
|
10
|
6.5
|
14.7
|
3-M10
|
23
|
|
320 350
|
4
|
63.513
|
85.0
|
61
|
134
|
90
|
—
|
10
|
6.5
|
14.7
|
3-M10
|
40,53
|
|
200
|
5
|
82.563
|
104.8
|
56
|
107
|
75
|
15
|
12
|
6.5
|
16.3
|
4-M10
|
15
|
|
250
|
5
|
82.563
|
104.8
|
75
|
120
|
80
|
15
|
12
|
6.5
|
16.3
|
4-M10
|
23
|
|
320 350
|
5
|
82.563
|
104.8
|
79
|
134
|
90
|
—
|
12
|
6.5
|
16.3
|
4-M10
|
40,53
|
|
400
|
5
|
82.563
|
104.8
|
79
|
143
|
95
|
—
|
12
|
6.5
|
16.3
|
4-M10
|
55
|
|
200
|
6
|
106.375
|
133.4
|
56
|
107
|
75
|
16
|
13
|
6.5
|
19.5
|
4-M12
|
15
|
|
250
|
6
|
106.375
|
133.4
|
75
|
120
|
80
|
16
|
13
|
6.5
|
19.5
|
4-M12
|
23
|
|
320 350
|
6
|
106.375
|
133.4
|
95
|
134
|
90
|
16
|
13
|
6.5
|
19.5
|
4-M12
|
40,53
|
|
400
|
6
|
106.375
|
133.4
|
95
|
143
|
95
|
16
|
13
|
6.5
|
19.5
|
4-M12
|
55
|
|
500
|
6
|
106.375
|
133.4
|
103
|
161
|
106
|
—
|
13
|
6.5
|
19.5
|
4-M12
|
102
|
|
250
|
8
|
139.719
|
171.4
|
75
|
120
|
80
|
18
|
14
|
8.0
|
24.2
|
4-M16
|
23
|
|
320 350
|
8
|
139.719
|
171.4
|
95
|
134
|
90
|
18
|
14
|
8.0
|
24.2
|
4-M16
|
40,53
|
|
400
|
8
|
139.719
|
171.4
|
125
|
143
|
95
|
18
|
14
|
8.0
|
24.2
|
4-M16
|
55
|
|
500
|
8
|
139.719
|
171.4
|
135
|
161
|
106
|
-
|
14
|
8.0
|
24.2
|
4-M16
|
106
|
|
320 350
|
11
|
196.869
|
235.0
|
95
|
134
|
90
|
20
|
16
|
10.0
|
29.4
|
6-M20
|
40,53
|
|
400
|
11
|
196.869
|
235.0
|
125
|
143
|
95
|
20
|
16
|
10.0
|
29.4
|
6-M20
|
68
|
|
500
|
11
|
196.869
|
235.0
|
160
|
161
|
106
|
20
|
16
|
10.0
|
29.4
|
6-M20
|
102
|
|
500
|
15
|
285.775
|
330.2
|
160
|
161
|
106
|
21
|
17
|
10.0
|
35.7
|
6-M24
|
102
|
產品備注
※根據用戶需求，還可提供配帶分離爪（滑座和頂爪連接尺寸符合ISO3442）的四爪單動卡盤，型號為K72口A/口、K72口D/口、 K72口E/口。
※Two-piece jaw sets on request (top jaws with tongue groove conforming to ISO3442).Thte model is K72口A/口、K72口D/口、 K72口E/口 separatly.
|
|
|
|
|
|
