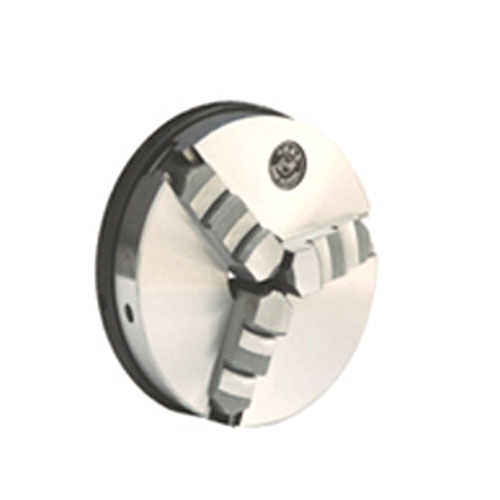

產品：K01
產品特性:
■特點：
☆連接形式有兩種：短圓柱連接和螺紋連接。
☆結構緊湊、體積小、操作方便、定心精度高、夾持范圍廣。
☆主要與儀表機床配套，適用于有色金屬及塑料等非金屬的切削加工。
☆根據用戶需求，還可特殊定做。
■Specificity:
☆The chucks have two mounting types:the short cylindrical center mounting and the thread mounting.
☆The compact chucks are small volume, easy to be used and enjoy a high centring pricision as well as a large clampig range.
☆The chucks are made for meter machine tools in the processing of non-ferrous metals, non-metals like plastics and so on.
☆We also can meet customer’s special order.
產品詳情

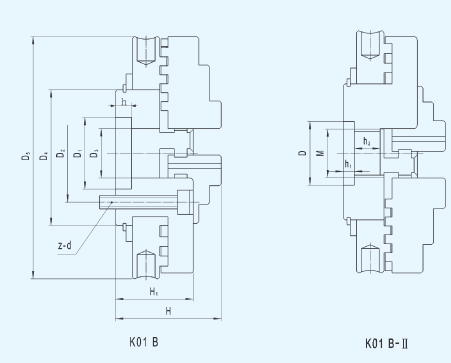

■尺寸、性能參數 Dimension、Characteristic Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
H
|
H1
|
h
|
h1
|
h2
|
z-d
|
M
|
夾緊范圍
clamping range
|
撐緊范圍
jamming range
|
凈重Kg
Net WT.
|
|
50
|
15
|
-
|
-
|
15
|
30
|
52
|
48
|
33
|
-
|
4
|
11
|
-
|
M14×1
|
1-33
|
16-50
|
0.4
|
|
63
|
14.1
|
22
|
28
|
14
|
36
|
68
|
34
|
25
|
6
|
5
|
8
|
3-M4
|
M14×1
|
1-50
|
16-50
|
0.5
|
|
80
|
16.1
|
25
|
35
|
16
|
45
|
84
|
42
|
30
|
6
|
5
|
9.5
|
3-M5
|
M16×1
|
1.5-70
|
20-70
|
1.5
|
|
100
|
24.1
|
32
|
42
|
22
|
52
|
104
|
52
|
36.5
|
6
|
5
|
13.5
|
3-M6
|
M24×1.5
|
2-90
|
26-90
|
2
|
|
250
|
-
|
-
|
100
|
80
|
120
|
270
|
72.2
|
52
|
-
|
-
|
-
|
3-M10
|
-
|
10-250
|
10-250
|
-
|
|
400
|
-
|
-
|
220
|
175
|
250
|
404
|
110
|
60
|
-
|
-
|
-
|
6-M10
|
-
|
120-400
|
120-400
|
-
|
|
