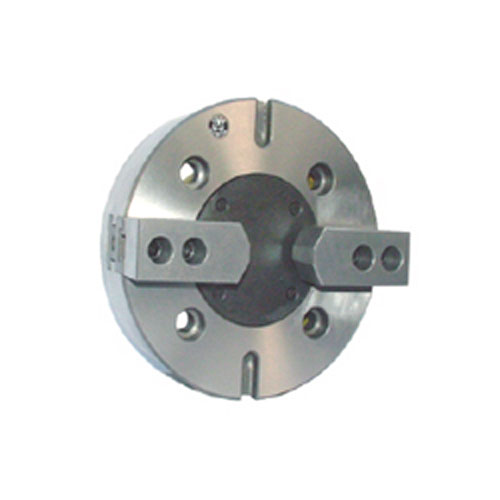

產品:K51T
產品特性:



	■特點:
☆短圓柱連接形式。
☆適用于加工各種異形零件,尤其是閥門零件。
☆性能可靠,經濟實用。

	■Specificity:
☆Short cylindrical center mounting.
☆Suitable for machining various special shaped components , especially for the valve type ones.
☆The chucks are economic practical and with high performance reliability.

	產品詳情

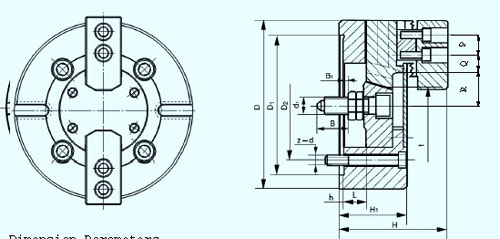

	■尺寸參數 Dimension Parameters



			|

					規格D


					Size

			 |


					D1

			 |


					D2

			 |


					d1

			 |


					H1

			 |


					H

			 |


					h

			 |


					P

			 |


					Qmax

			 |


					Qmin

			 |


					Rmax

			 |


					Rmin

			 |


					B

			 |


					B1max

			 |


					B1min

			 |


					z-d

			 |


			|

					160

			 |


					130

			 |


					110

			 |


					M16

			 |


					70

			 |


					(113)117

			 |


					4

			 |


					20

			 |


					16

			 |


					6

			 |


					38

			 |


					33

			 |


					30

			 |


					1

			 |


					-18

			 |


					4-M12

			 |


			|

					200

			 |


					165

			 |


					130

			 |


					M20

			 |


					80

			 |


					(131)133

			 |


					4

			 |


					24

			 |


					25

			 |


					8

			 |


					44

			 |


					38

			 |


					34

			 |


					0

			 |


					-23

			 |


					4-M14

			 |


			|

					250

			 |


					210

			 |


					171.4

			 |


					M22

			 |


					95

			 |


					(155)153

			 |


					5

			 |


					28

			 |


					31

			 |


					10

			 |


					57

			 |


					50

			 |


					37

			 |


					2

			 |


					-25

			 |


					4-M16

			 |


			|

					320

			 |


					270

			 |


					235

			 |


					M24

			 |


					105

			 |


					177

			 |


					6

			 |


					32

			 |


					44

			 |


					12

			 |


					75

			 |


					66

			 |


					41

			 |


					3

			 |


					-27

			 |


					4-M18

			 |


			|

					400

			 |


					340

			 |


					250

			 |


					M24

			 |


					115

			 |


					(195)199

			 |


					6

			 |


					45

			 |


					68

			 |


					13

			 |


					76

			 |


					37

			 |


					39

			 |


					8

			 |


					-26

			 |


					4-M20

			 |





	■性能參數 Characteristic Parameters



			|

					規格D


					Size

			 |


					楔心套行程Lmax


					Axial wedge stroke

			 |


					爪行程(直徑)


					Jaw stroke(Dia.)

			 |


					許用推拉力kN


					Max. draw pull

			 |


					最大夾緊力kN


					Max. gripping force

			 |


					極限轉速r/min


					Max. speed

			 |


					夾緊范圍


					Clpmping ra20-160nge

			 |


					撐緊范圍


					Jamming range

			 |


					凈重Kg


					Net WT

			 |


			|

					160

			 |


					19

			 |


					10

			 |


					10

			 |


					22

			 |


					2800

			 |


					10-160

			 |


					25-160

			 |


					10

			 |


			|

					200

			 |


					23

			 |


					12

			 |


					16.7

			 |


					37

			 |


					2300

			 |


					16-200

			 |


					30-200

			 |


					20

			 |


			|

					250

			 |


					27

			 |


					14

			 |


					30

			 |


					66

			 |


					1800

			 |


					35-250

			 |


					54-250

			 |


					31

			 |


			|

					320

			 |


					30

			 |


					16

			 |


					37

			 |


					82

			 |


					1300

			 |


					35(50)-320

			 |


					50(65)-320

			 |


					48

			 |


			|

					400

			 |


					34

			 |


					18

			 |


					46

			 |


					102

			 |


					800

			 |


					35(65)-400

			 |


					50(80)-400

			 |


					78

			 |



	產品備注
	※表中數值用于K51TB型卡盤。
※The values on the above table’s parentheses is for K51TB chuck .


  |
