產品：K46
產品特性:
■特點：
☆離心力補償，適合高速加工。
☆大通孔，高精度。
☆結構緊湊，安裝方便可靠。
☆配帶軟卡爪。
■Specificity:
☆Centrical compensation suitable for high speed machining.
☆Large through hole high accuracy.
☆I(lǐng)t has compact structure and easy processing.
☆Matched with soft jaws.
產品詳情

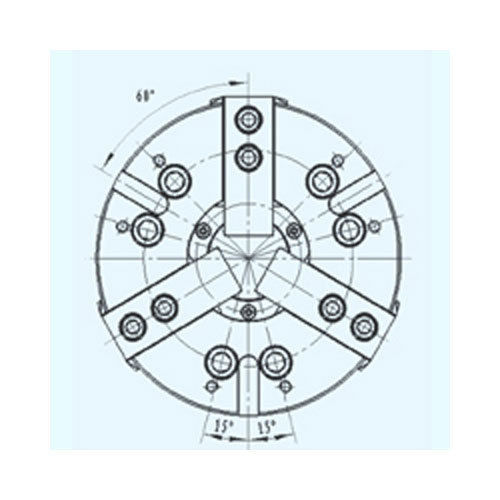

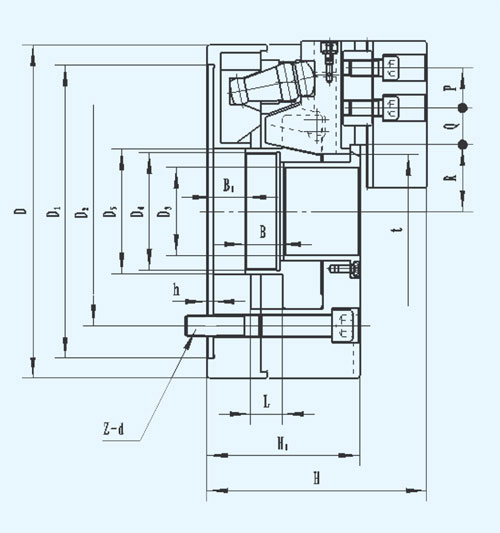

■尺寸參數 Dimension Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
H1
|
H
|
h
|
p
|
Qmax
|
Qmin
|
Rmax
|
Rmin
|
B
|
B1max
|
B1min
|
z-d
|
|
160
|
169
|
140
|
140.8
|
45
|
M55×2
|
61
|
90
|
120
|
5
|
20
|
22.75
|
9.25
|
34
|
30.8
|
23
|
15
|
0
|
6-M10
|
|
200
|
210
|
170
|
133.4
|
52
|
M60×2
|
66
|
100
|
142
|
5
|
25
|
29.75
|
14.75
|
39
|
35
|
24
|
19
|
0
|
6-M12
|
|
250
|
250
|
220
|
171.4
|
66
|
M85×2
|
94
|
115
|
162.5
|
5
|
30
|
33.75
|
14.25
|
50.5
|
45.5
|
26
|
24
|
0
|
6-M16
|
|
315
|
315
|
300
|
235
|
95
|
M110×2
|
120
|
120
|
174
|
5
|
30
|
45.75
|
15.75
|
64
|
59
|
28
|
24
|
0
|
6-M16
|
■性能參數 Characteristic Parameters
|
規格
Size
|
楔心套行程
Lmax
Wedge stroke
|
爪行程t
（直徑）
Jaw stroke
(Dia.)
|
許用推拉力kN
Max. draw bar pull
|
最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
Clamping range
|
撐緊范圍
Jamming range
|
推薦配套油缸
Rec. cylinder
|
|
160
|
15
|
6.4
|
25
|
70
|
6500
|
14-169
|
30-169
|
P25125
|
|
200
|
19
|
8
|
38
|
110
|
6000
|
14-210
|
36-210
|
P25155
|
|
250
|
24
|
10
|
50
|
145
|
4500
|
30-254
|
45-250
|
P25180
|
|
315
|
24
|
10
|
60
|
170
|
4000
|
50-315
|
36-315
|
P25205
|
|
